Choosing the right ZTE set top box depends on your home setup, content priorities, and preferred hardware form. Both the B866V2-H and B866W10A support 4K Android TV experiences, but the differences between the two go beyond resolution or interface. Each is built with a specific use case in mind.
Comparison at a Glance
| Feature | ZXV10 B866V2-H | ZXV10 B866W10A |
| Form Factor | Compact set top box | Ultra small dongle |
| Network Interface | Ethernet RJ45 | Wi‑Fi only, USB‑C powered |
| USB Ports | 2 × USB‑A | None for storage (power only) |
| HDMI with HDCP | HDMI 2.0b | HDMI 2.0b + HDCP 2.3 |
| Audio Output | Optical SPDIF, analog AV | HDMI only |
| Video Decoding | UHD, OTT, PlayReady, Widevine | UHD, HEVC/H.265, AV1 |
| Bluetooth | No (use TV remote) | Yes, Bluetooth 5.0 |
| Weight and Size | 108 × 108 × 23 mm; 120 g | Ø 64 × 13 mm; 38 g |
| Ideal Use | Home theater with wired network and multiple devices | Portable streaming on Wi‑Fi TV |

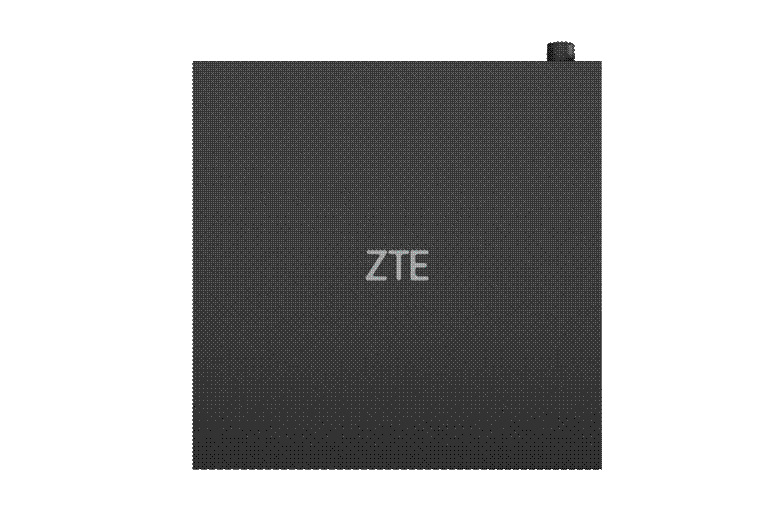

ZTE Set Top Box: ZXV10 B866V2-H Overview
The ZXV10 B866V2-H is a high-end Android TV set top box. It uses a powerful system-on-chip (SoC) tailored for smooth 4K playback and supports OTT streaming standards. Preinstalled apps include Netflix, Prime Video, and Disney+. It also supports PlayReady and Widevine digital rights management so providers can deliver licensed content reliably.
Key Highlights
- High-performance SoC optimized for UHD content
- Netflix, Prime Video, Disney+ ready
- Attractive casing and packaging
Technical Specs in Brief
- Ethernet: 1 × 10/100 Mbps RJ45
- USB: 2 × USB‑A 2.0
- HDMI: 1 × HDMI 2.0b
- SPDIF: 1 × optical
- AV: TRRS port for CVBS + analog audio
- Certifications: CE, Dolby Digital Plus, HDMI
- Power: AC 100–240 V input, DC 12 V/1 A output
- Dimensions: 108 × 108 × 23 mm; weight 120 g
This box is heavier and larger than a dongle. It integrates full USB ports and optical audio output, making it suitable for users who want to connect to external drives or multi-channel sound systems.

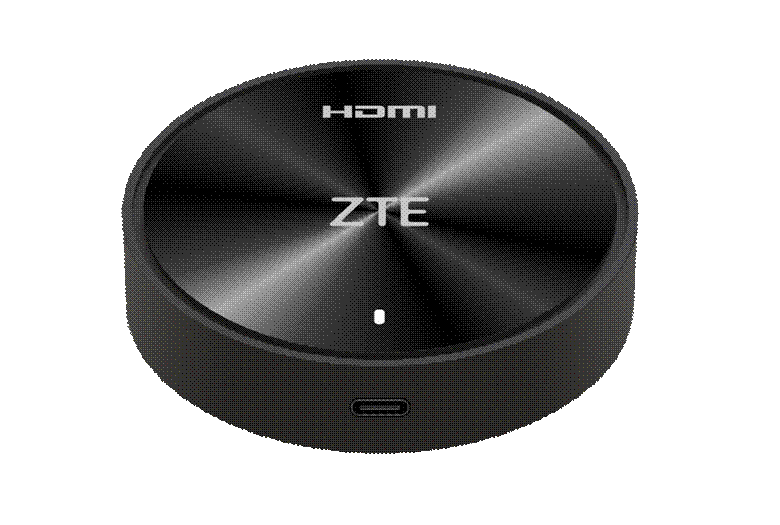

ZTE Set Top Box: ZXV10 B866W10A Overview
The ZXV10 B866W10A is a compact Android TV dongle. It packs HEVC/H.265 and AV1 decoding into a tiny package. With Bluetooth 5.0 support, it enables wireless audio devices. Its compact size makes it ideal for portable or space-constrained setups.
Key Highlights
- UHD Android TV in dongle form
- HEVC and AV1 support at 4K×2K @60 fps
- Bluetooth 5.0
Technical Specs in Brief
- USB: 1 × USB‑C for power
- HDMI: 1 × HDMI 2.0b with HDCP 2.3
- Operating System: Android TV
- Certifications: CE, HDMI
- Size: diameter 64 mm, depth 13 mm; weight 38 g
This dongle leaves out Ethernet and optical audio. It focuses on streaming traffic via Wi‑Fi, which may suit users who want minimal cables and easy portability.
Comparing Performance and Connectivity
Processing & Streaming
Both devices run Android TV and support 4K content. The B866V2-H uses a more powerful SoC with Ethernet support, making it better for wired home networks. The dongle relies on Wi‑Fi for streaming. With built‑in HEVC and AV1 decoding, it still supports high quality playback, but it depends on signal quality.
The high‑end box handles remote work and casual gaming apps fluently, thanks to its dedicated processing power. The dongle performs well for general streaming but may lag with network dropouts.
Audio & Video Output
The box comes with HDMI 2.0b, SPDIF, and analog AV output. That makes it flexible for use with TVs, sound bars, or legacy systems. The dongle offers just HDMI with HDCP 2.3 support, suitable for direct TV connections. If you have a home theater or want optical audio, the box is preferable.
Power and Size
A highlight of the dongle is its compact form: measuring 64 mm across and 13 mm thick, it fits into carrying cases or tight TV back panels easily. It runs on a USB‑C power source, usually a TV port or small adaptor. The box, though heavier and larger, has full ports and buttons. If portability matters, the dongle wins. For fixed setups, the box offers more utility.
Network and Expandability
The B866V2-H uses Ethernet, which may deliver smoother playback in congested Wi‑Fi environments. USB ports add support for external storage or peripheral devices. The dongle lacks Ethernet and expandable USB storage. In home networks with strong Wi‑Fi and no need for expansion, the dongle simplifies setup.
Use Case Scenarios
Here’s a quick comparison of each ZTE set top box in various applications:
- Living Room Home Theater: If you use a sound bar, optical audio, or access to a wired network, the B866V2-H is ideal. Its HDMI, SPDIF, and analog output give flexibility across different systems. It’s also easy to plug in a USB drive with local content.
- Small Bedroom or Dorm Room: The dongle offers a compact, cable‑free option that attaches directly to the HDMI port behind a TV. For users subscribed to OTT services and streaming only, it delivers a full Android TV experience. Bluetooth support helps with wireless headphones or speakers.
- Portable Travel TV Setup: Travelers can carry the dongle in a bag and plug it into any smart TV or projector with HDMI. It can connect to available Wi‑Fi hotspots, making hotel streaming easy. The heavier box is less practical for travel.
- Shared Wi‑Fi Environments: In apartments or shared housing, dongle Wi‑Fi performance may vary. The box’s Ethernet port ensures reliable data flow unaffected by interference. For shared internet spaces, the box provides a more stable connection.
Selecting the Right ZTE Set Top Box
Selecting the right ZTE set top box depends entirely on how you plan to use it within your home setup. The ZXV10 B866V2-H is best suited for users who prioritize stable connectivity, peripheral expansion, and versatile audio/video output.
With Ethernet support, dual USB ports, and both HDMI and optical audio, it integrates well with home theater systems, external storage, and wired networks. It’s ideal for a fixed setup in the living room where multiple devices are connected and smooth playback is important.
On the other hand, the ZXV10 B866W10A is built for simplicity and portability. It’s small enough to fit in your palm, powered via USB-C, and plugs directly into the HDMI port of a TV or monitor. This dongle is perfect for single-user environments like bedrooms or dorm rooms, where space is limited and Wi-Fi is reliable. With Bluetooth 5.0, it supports wireless audio accessories, making it convenient for late-night viewing or mobile setups.
In short, if your priority is performance and connectivity, go with the B866V2-H. If you value portability and simplicity, the B866W10A will serve you well. Matching the device to your specific setup and content habits leads to the most effective use.
Assess your needs: Do you require Ethernet and analog audio support, or do you prefer wireless convenience? Both products deliver UHD content with Android TV software, OTT app access, and modern video codecs.
Blending convenience with technical specs helps you match device to use case. A clear decision based on the setup environment gives better long-term satisfaction than chasing the latest specs. Choose the ZTE set top box that aligns with how you watch TV.
